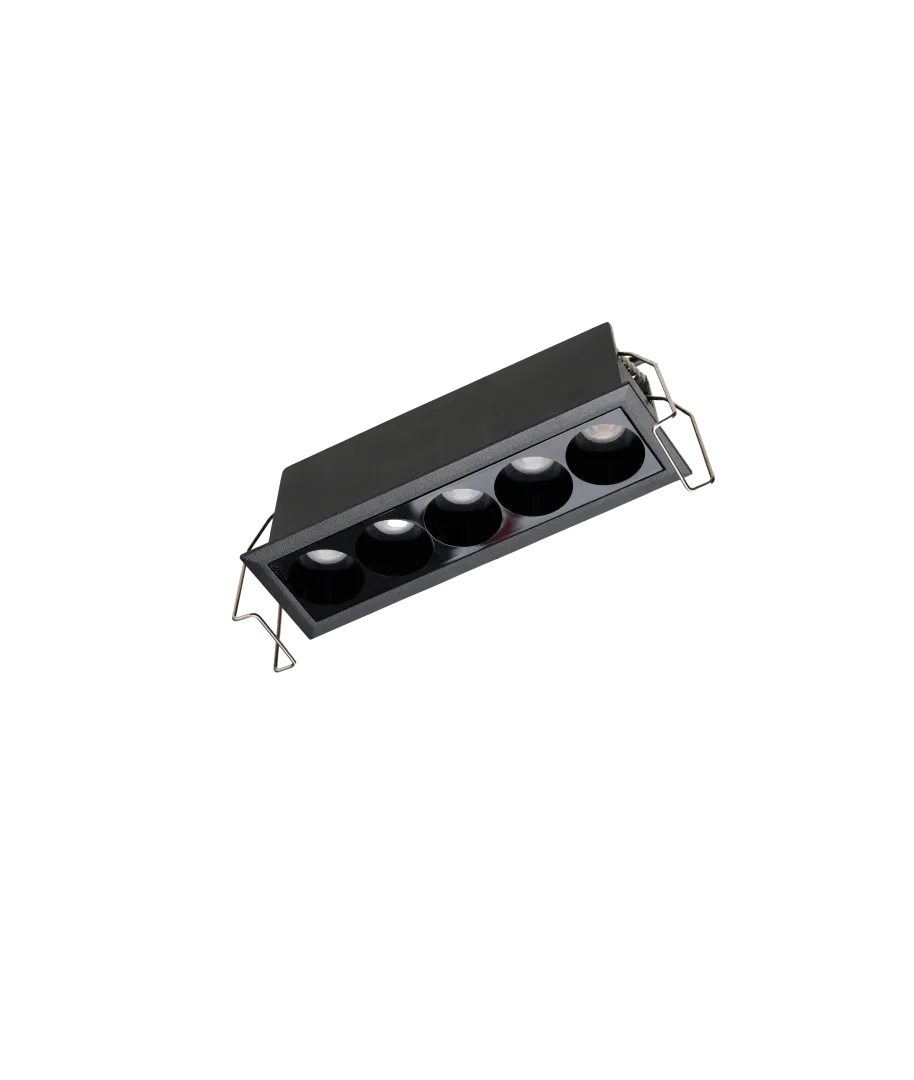

TETRIX 5 GIPS 10W CCT BK
AZ6276
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Basic information
Type: DOWNLIGHT
Type of light source: LED INTEGRATED
Maximum power: 8W
Energy class: G
Protection class: IP20
Materials and colors
Dominant color: BLACK
Main finish: MATTE
Dominant material: ALUMINIUM
Accent material: PVC
Dimensions
Product height [cm]: 4,9
Product length [cm]: 14,6
Installation depth [cm]: 4,8
Installation width [cm]: 3,4
Product width [cm]: 4,4
Specifications
Light source: 1
Lumens [lm]: 357 / 435
Beam angle: 38°
Dimmable: NO
CCT: YES
RGB: NO
CRI [Ra]: ≥ 90
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Control options: • CCT SWITCH• TRIAC DIMMER
Control type > For all: CCT SWITCH
Voltage: ~ 230V
Protection class (against electric shock): 2
Packaging details
Net weight [kg]: 0,27
Gross weight [kg]: 0,31
Box 1 depth [cm]: 6,5
