SANTOS WH/WH
AZ4182
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Basic information

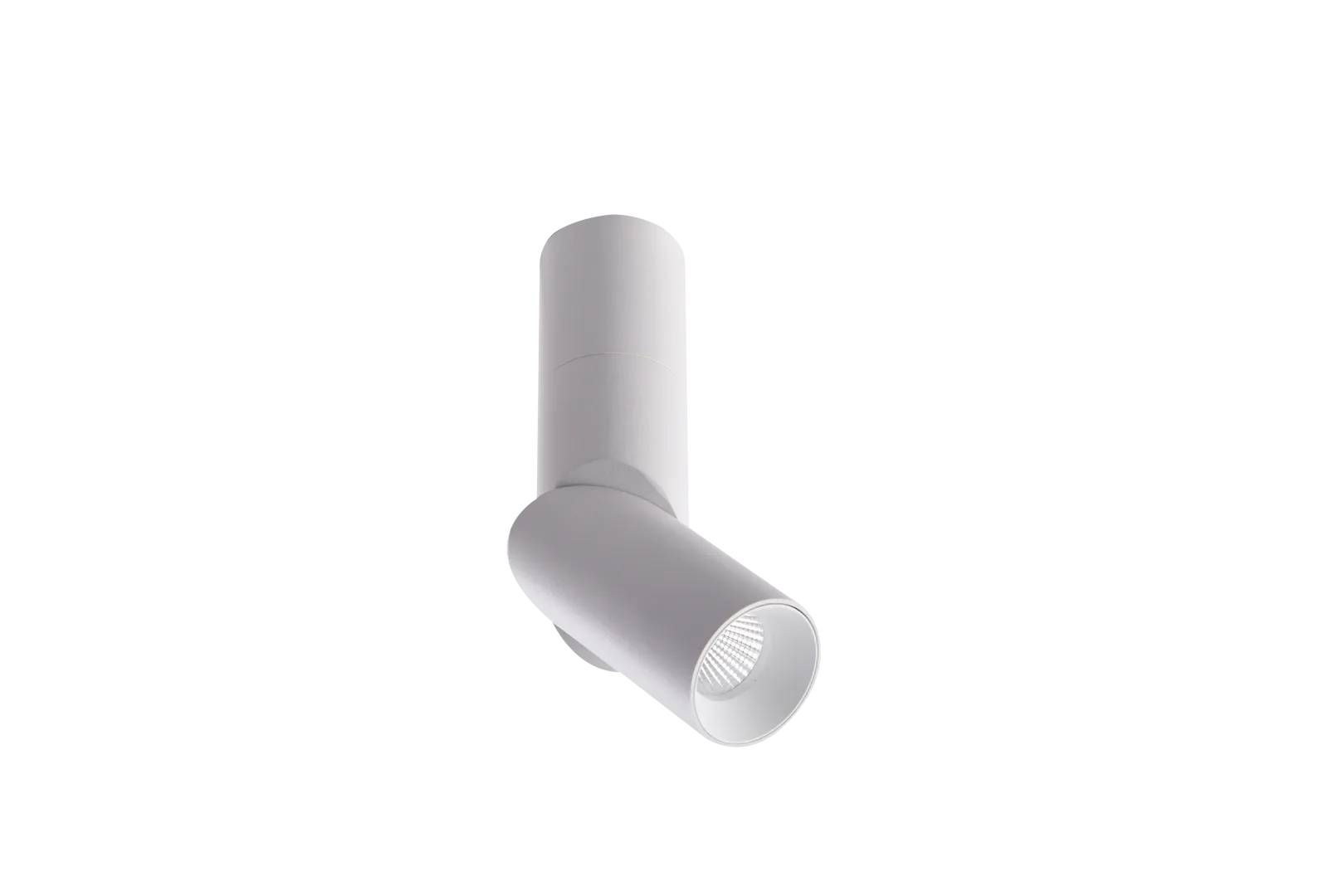

Type: EXPOSED DOWNLIGHT
Type of light source: LED INTEGRATED
Maximum power: 9W
Energy class: G
Protection class: IP20
Materials and colors
Dominant color: WHITE
Main finish: MATTE
Dominant material: ALUMINIUM
Ceiling base color: WHITE
Shade color: White
Dimensions
Lampshade height [cm]: 10,5
Lampshade width [cm]: 5
Specifications
Light source: 1
Lumens [lm]: 1137
Color temperature [K]: 3000
Beam angle: 23°
Dimmable: NO
CCT: NO
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Voltage: ~ 230V
Protection class (against electric shock): 1
Tilt: 90°
Rotation: 350°
Packaging details
Net weight [kg]: 0,43
Gross weight [kg]: 0,48
Box 1 depth [cm]: 6,5
