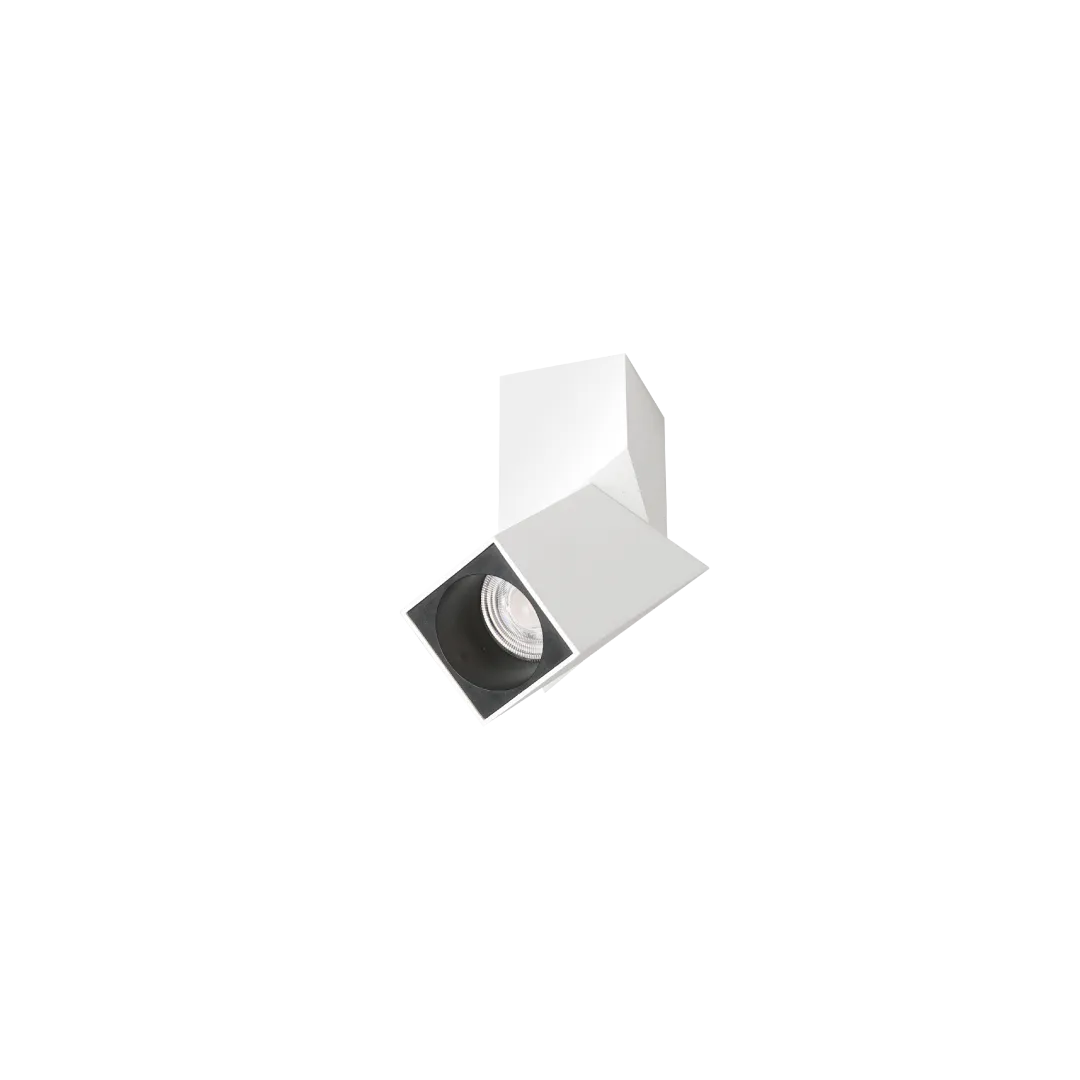

SANTOS SQUARE WH
AZ3522
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Basic information
Type: EXPOSED DOWNLIGHT
Type of light source: LED INTEGRATED
Maximum power: 11W
Energy class: G
Protection class: IP20
Materials and colors
Dominant color: WHITE
Main finish: MATTE
Dominant material: ALUMINIUM
Ceiling base color: WHITE
Shade color: White / Black
Dimensions
Ceiling base height [cm]: 13
Ceiling base width [cm]: 6
Ceiling base length [cm]: 6
Lampshade height [cm]: 13
Lampshade width [cm]: 6
Specifications
Light source: 1
Color temperature [K]: 3000
Beam angle: 25°
Dimmable: NO
CCT: NO
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Voltage: ~ 230V
Protection class (against electric shock): 1
Tilt: 90°
Rotation: 350°
Packaging details
Net weight [kg]: 0,63
Gross weight [kg]: 0,67
Box 1 depth [cm]: 6,5
