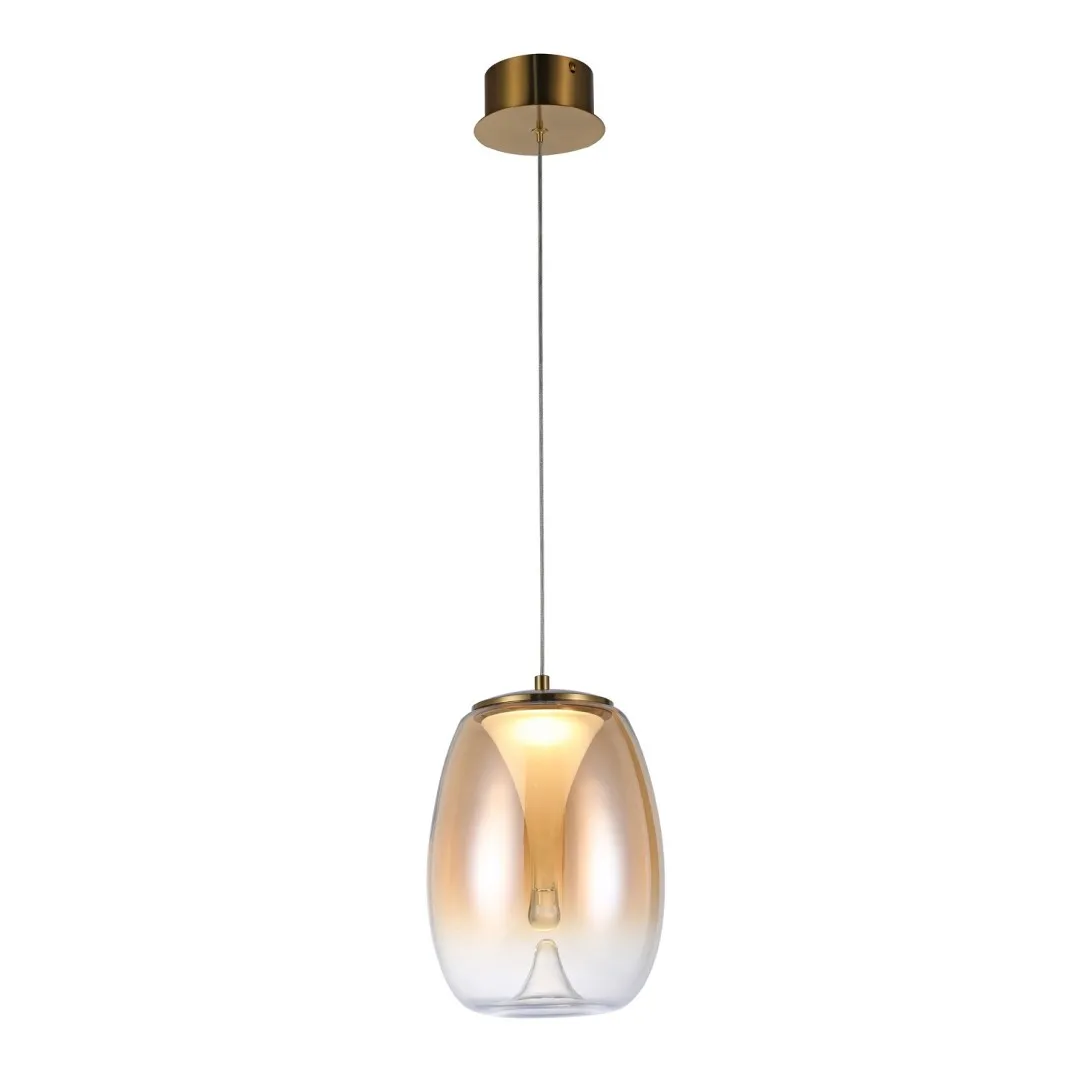

PAMELA 20 AMBER
AZ6184
Files to download:
Instrukcje montażu
Karty techniczne
Deklaracja zgodności CE [PL]
Deklaracja zgodności CE [ENG]
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Informacje podstawowe
Type: PENDANT
Type of light source: LED INTEGRATED
Maximum power: 8W
Energy class: G
Protection class: IP20
Dominant color: BRASS
Main finish: SHINY
Accent color: BRASS
Dominant material: GLASS
Accent material: ALUMINIUM
Ceiling base color: BRASS
Shade color: Amber

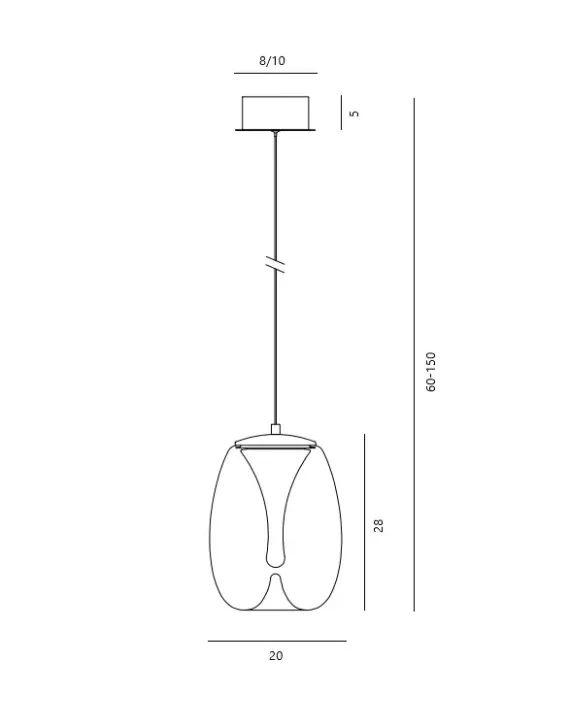

Ceiling base height [cm]: 5
Ceiling base width [cm]: 8 / 10
Lampshade height [cm]: 28
Lampshade width [cm]: 20
Light source: 1
Lumens [lm]: 640
Color temperature [K]: 3000
Dimmable: NO
CCT: NO
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Voltage: ~ 230V
Protection class (against electric shock): 2
Net weight [kg]: 1,8
Gross weight [kg]: 2
Box 1 depth [cm]: 27,6
