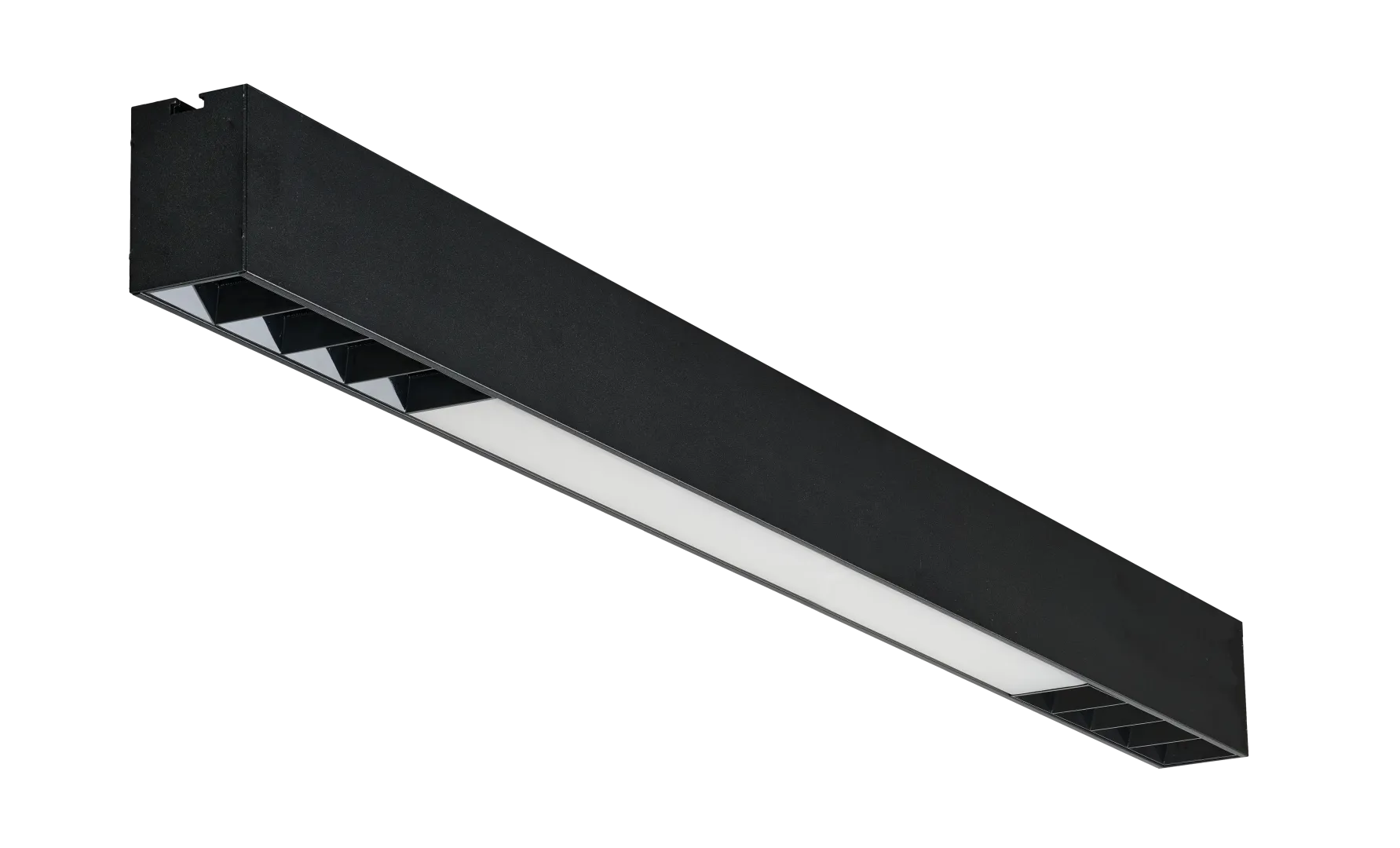

LINELIO MIX 67 CCT DIMM BK
AZ5660
Files to download:
Instrukcje montażu
Karty techniczne
Deklaracja zgodności CE [PL]
Deklaracja zgodności CE [ENG]
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Type: EXPOSED DOWNLIGHT
Type of light source: LED INTEGRATED
Maximum power: 24W
Energy class: G
Protection class: IP20
Dominant color: BLACK
Main finish: MATTE
Dominant material: ALUMINIUM
Accent material: PVC
Light source: 1
Color temperature [K]: 3000 / 4000 / 6000
Dimmable: YES
CCT: YES
RGB: NO
CRI [Ra]: ≥ 90
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Control options: • CCT SWITCH
• TRIAC DIMMER
Control type > For all: CCT SWITCH
Voltage: ~ 230V
Protection class (against electric shock): 1
Lumens [lm]: 1576
Beam angle: 30° / 120°
Net weight [kg]: 1,1
Gross weight [kg]: 1,2
Box 1 depth [cm]: 4,3
Product height [cm]: 5,2
Product length [cm]: 67
Lampshade length [cm]: 2x 13,2 / 1x 39,6
