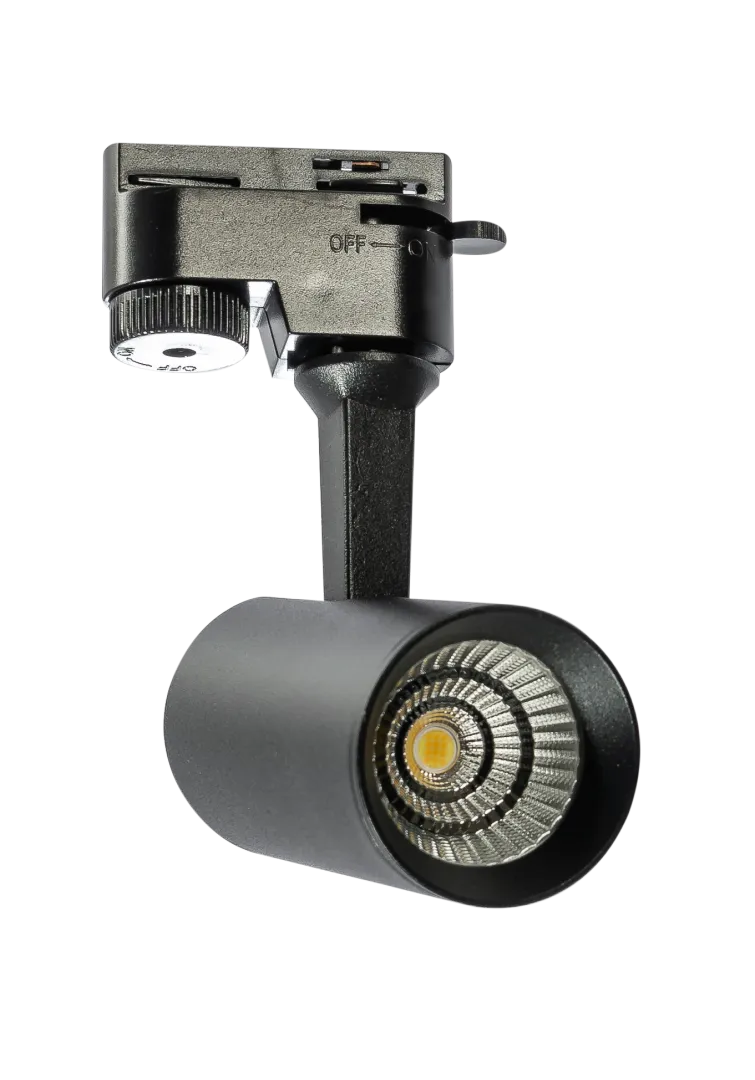

KIRKE TRACK 1LINE 10W CCT BK
AZ4656
Files to download:
Instrukcje montażu
Karty techniczne
Deklaracja zgodności CE [PL]
Deklaracja zgodności CE [ENG]
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Informacje podstawowe
Type: TRACK LAMPS
Track type: 1-LINE - 230V
Type of light source: LED INTEGRATED
Maximum power: 9W
Energy class: G
Protection class: IP20
Dominant color: BLACK
Main finish: MATTE
Dominant material: ALUMINIUM
Accent material: PVC
Shade color: Black
Lampshade height [cm]: 11
Lampshade width [cm]: 5,2
Light source: 1
Lumens [lm]: 810
Color temperature [K]: 2700 ~ 4000 ~ 6300
Beam angle: 36°
Dimmable: NO
CCT: YES
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Control options: • CCT SWITCH• TRIAC DIMMER
Control type > For all: CCT SWITCH
Voltage: ~ 230V
Protection class (against electric shock): 2
Tilt: 90°
Rotation: 360°
Net weight [kg]: 0,31
Gross weight [kg]: 0,35
Box 1 depth [cm]: 6
