IVER IP54 SENSOR 4000K DGR
AZ5702
Files to download:
Instrukcje montażu
Karty techniczne
Deklaracja zgodności CE [PL]
Deklaracja zgodności CE [ENG]
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Informacje podstawowe
Type: WALL
Type of light source: LED INTEGRATED
Maximum power: 20W
Energy class: G
Protection class: IP54
Dominant color: DARK GREY
Main finish: MATTE
Dominant material: ALUMINIUM
Accent material: PVC
Wall base color: DARK GREY
Shade color: Dark Grey

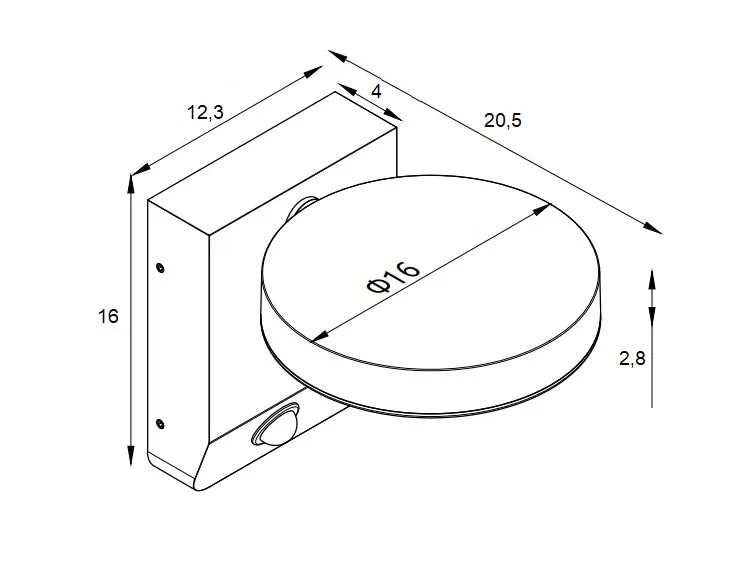

Product height [cm]: 16
Product length [cm]: 20,5
Wall base height [cm]: 16
Wall base width [cm]: 12,3
Wall base length [cm]: 4
Lampshade height [cm]: 2,8
Lampshade width [cm]: 16
Light source: 1
Lumens [lm]: 1484
Color temperature [K]: 4000
Beam angle: 120°
Dimmable: NO
CCT: NO
RGB: NO
CRI [Ra]: ≥ 90
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: YES
Sensor range: HORIZONTAL: 0,5 - 10 m. | VERTICAL: 2 - 2,5 m. | ANGLE: 150° | TIME: 30 s. - 3 min. | DUSK SENSITIVITY
Control options: • MOTION SENSOR
Control type > For all: MOTION SENSOR
Voltage: ~ 230V
Protection class (against electric shock): 1
Rotation: 350°
Net weight [kg]: 1,2
Gross weight [kg]: 1,3
Box 1 depth [cm]: 21,5
