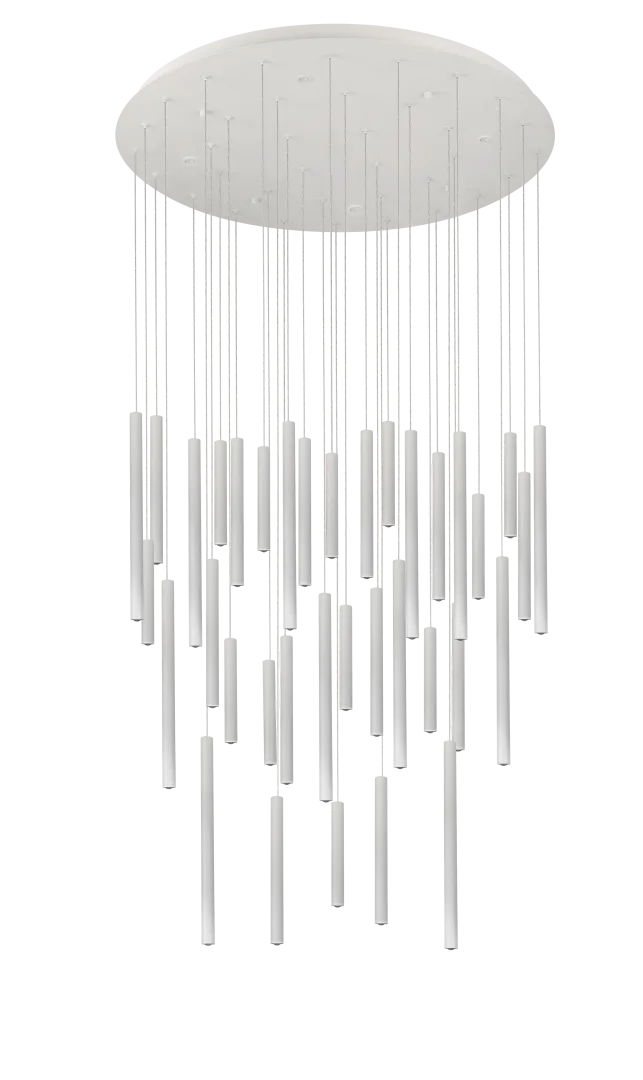

ILIOS 36 PENDANT 3-STEP DIMM WH
AZ5749
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Basic information
Type: PENDANT
Type of light source: LED INTEGRATED
Maximum power: 160W
Energy class: G
Protection class: IP20
Materials and colors
Dominant color: WHITE
Main finish: MATTE
Dominant material: ALUMINIUM
Ceiling base color: WHITE
Shade color: White
Dimensions
Ceiling base height [cm]: 4
Ceiling base width [cm]: 75 / 80
Lampshade height [cm]: 20 / 30 / 40
Lampshade width [cm]: 2,5
Specifications
Light source: 40
Lumens [lm]: 12800
Color temperature [K]: 3000
Dimmable: YES
CCT: NO
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Control options: • 3-STEP DIMMER
Control type > For all: 3-STEP DIMMER
Voltage: ~ 230V
Protection class (against electric shock): 1
Packaging details
Net weight [kg]: 12,8
Gross weight [kg]: 14,2
Box 1 depth [cm]: 103,5
