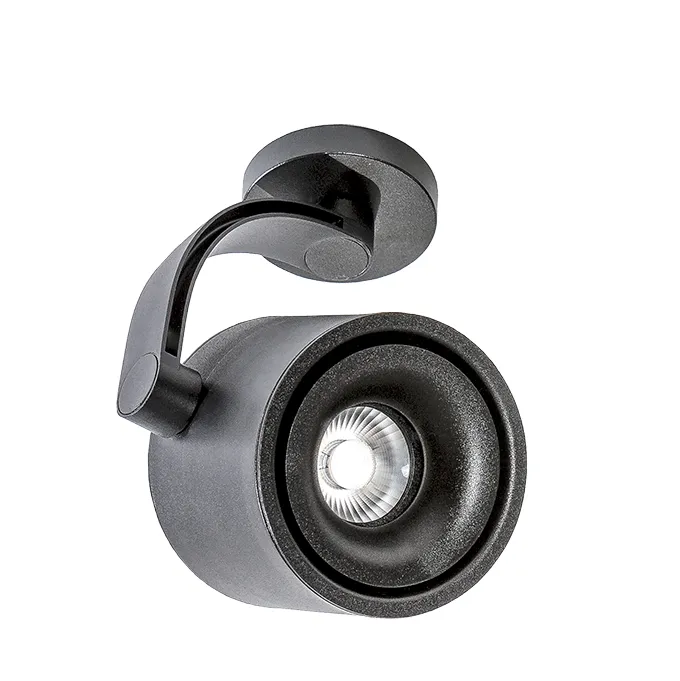

COSTA ARM BK/BK
AZ2702
Files to download:
Instrukcje montażu
Karty techniczne
Deklaracja zgodności CE [PL]
Deklaracja zgodności CE [ENG]
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Informacje podstawowe
Type: EXPOSED DOWNLIGHT
Type of light source: LED INTEGRATED
Maximum power: 12W
Energy class: G
Protection class: IP20
Dominant color: BLACK
Main finish: MATTE
Dominant material: ALUMINIUM
Ceiling base color: BLACK
Shade color: Black
Product length [cm]: 11,5
Ceiling base height [cm]: 1,3
Ceiling base width [cm]: 7
Lampshade height [cm]: 8,8
Lampshade width [cm]: 10
Light source: 1
Lumens [lm]: 960
Color temperature [K]: 3000
Beam angle: 24°
Dimmable: NO
CCT: NO
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Voltage: ~ 230V
Protection class (against electric shock): 1
Tilt: 350°
Rotation: 360°
Net weight [kg]: 0,5
Gross weight [kg]: 0,57
Box 1 depth [cm]: 9
