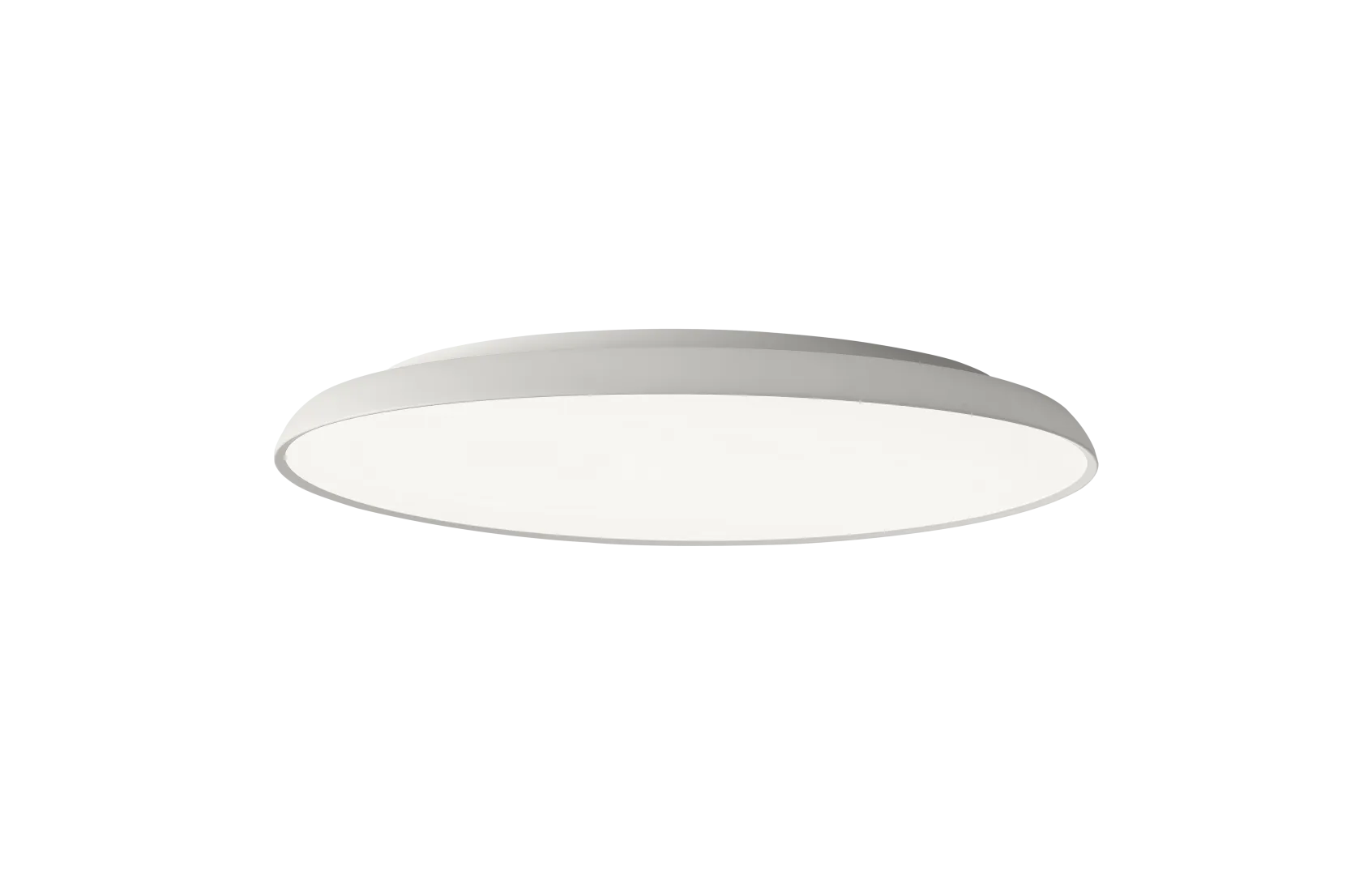

CLARA TOP 80 CCT SWITCH DIMM WH
AZ5806
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Basic information
Type: TOP
Type of light source: LED INTEGRATED
Maximum power: 80W
Energy class: G
Protection class: IP20
Materials and colors
Dominant color: WHITE
Main finish: MATTE
Dominant material: METAL
Ceiling base color: WHITE
Shade color: White
Dimensions
Product height [cm]: 8
Ceiling base height [cm]: 3
Ceiling base width [cm]: 74
Lampshade height [cm]: 5
Lampshade width [cm]: 80
Specifications
Light source: 1
Lumens [lm]: 6400
Color temperature [K]: 3000 / 4000 / 6000
Dimmable: YES
CCT: YES
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Control options: • CCT SWITCH• TRIAC DIMMER
Control type > For all: CCT SWITCH
Voltage: ~ 230V
Protection class (against electric shock): 1
Packaging details
Net weight [kg]: 9,2
Gross weight [kg]: 10,2
Box 1 depth [cm]: 86
