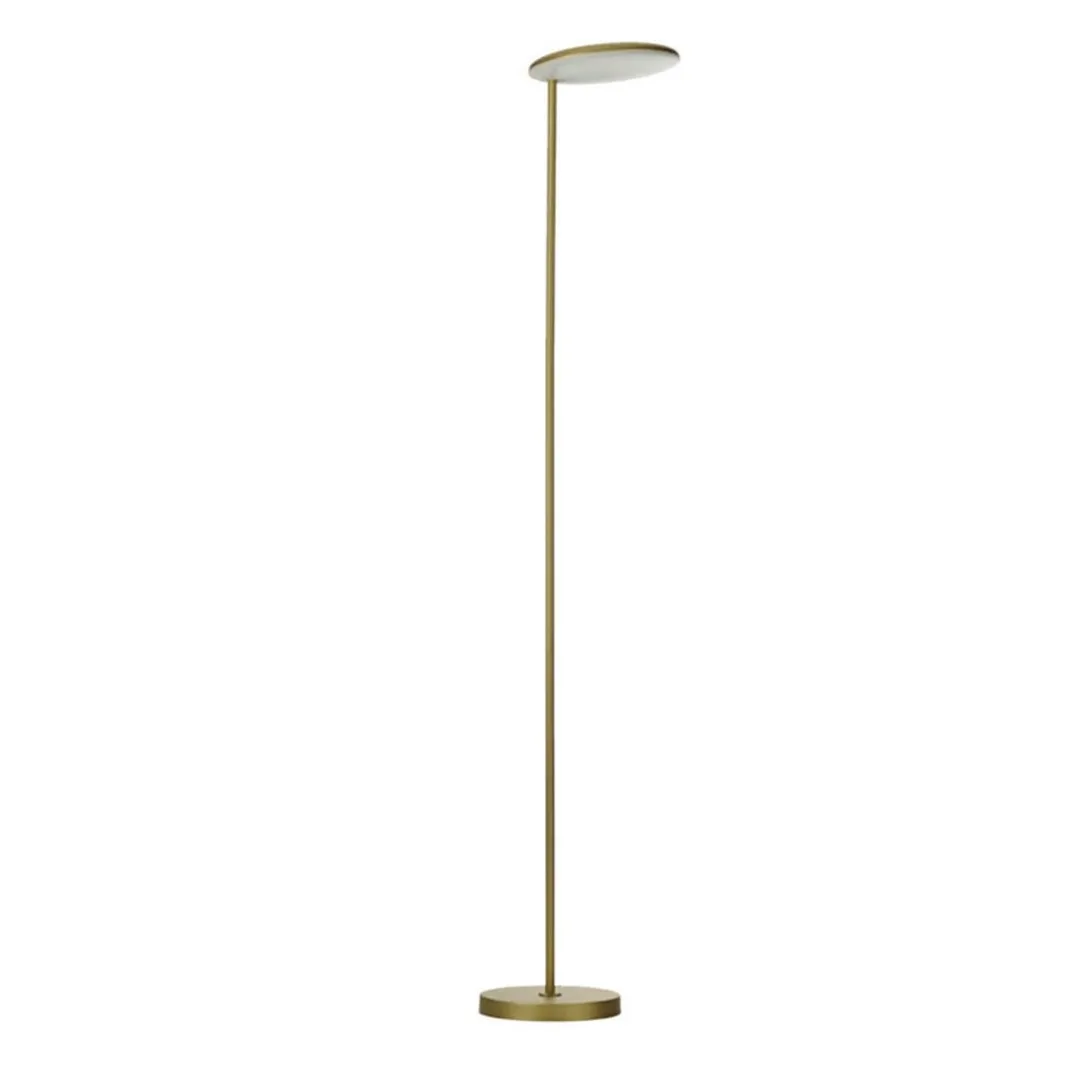

CARPA FLOOR DIMM GO
AZ6307
Files to download:
Instrukcje montażu
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Informacje podstawowe
Type: FLOOR
Type of light source: LED INTEGRATED
Maximum power: 33W
Energy class: G
Protection class: IP20
Dominant color: GOLD
Main finish: MATTE
Dominant material: ALUMINIUM
Accent material: PVC
Floor base color: GOLD
Power cord color: BLACK
Shade color: Gold
Product length [cm]: 33
Floor base height [cm]: 4
Floor base width [cm]: 25
Power cord length [cm]: 239
Lampshade height [cm]: 3,5
Lampshade width [cm]: 27
Light source: 1
Lumens [lm]: 2202
Color temperature [K]: 3000
Dimmable: YES
CCT: NO
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Control options: • FOOT DIMMER
Control type > For all: FOOT DIMMER
Voltage: ~ 230V / ⎓ 36V
Protection class (against electric shock): 2
Tilt: 210°
Rotation: 360°
Net weight [kg]: 5,2
Gross weight [kg]: 5,8
Box 1 depth [cm]: 9,5
