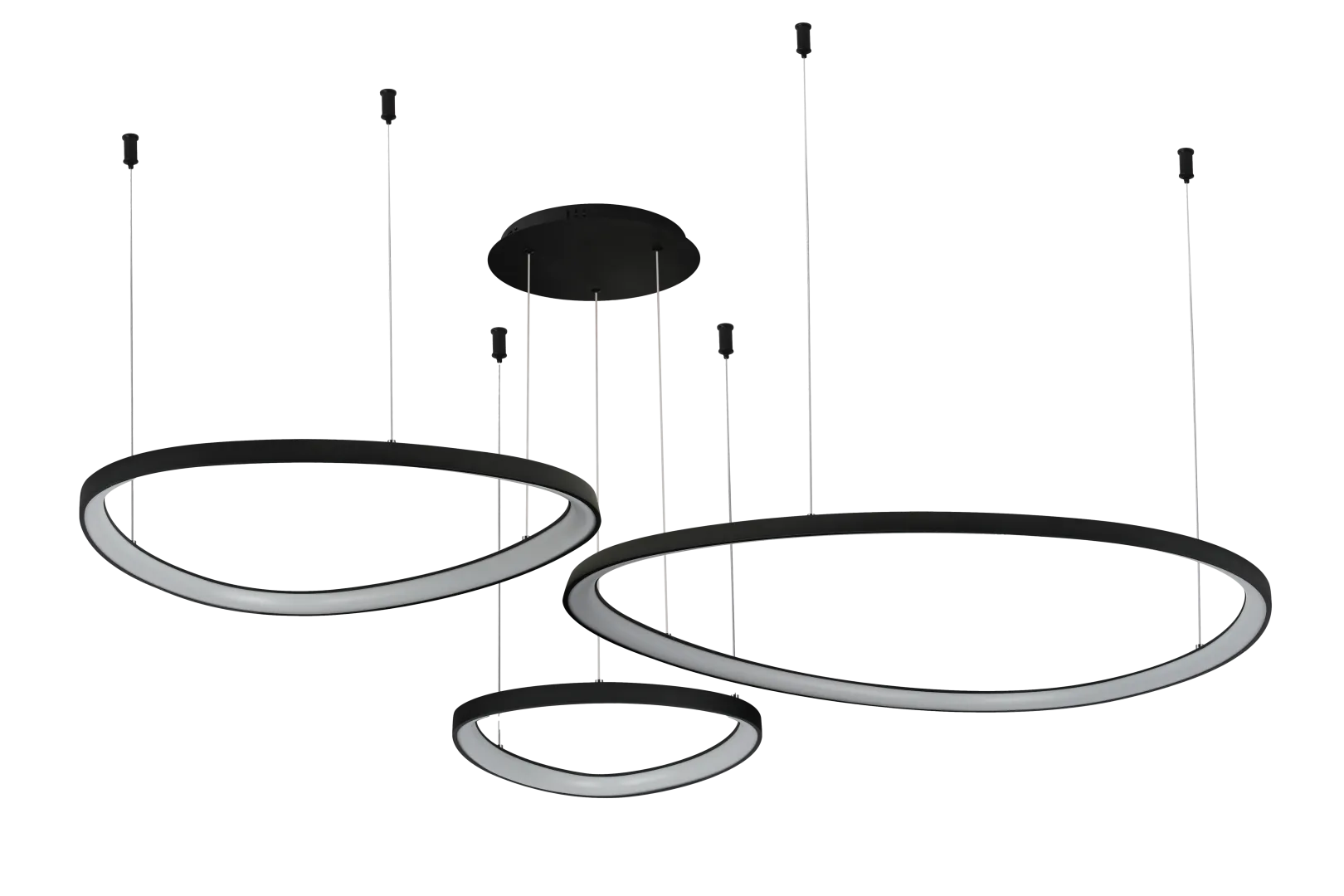

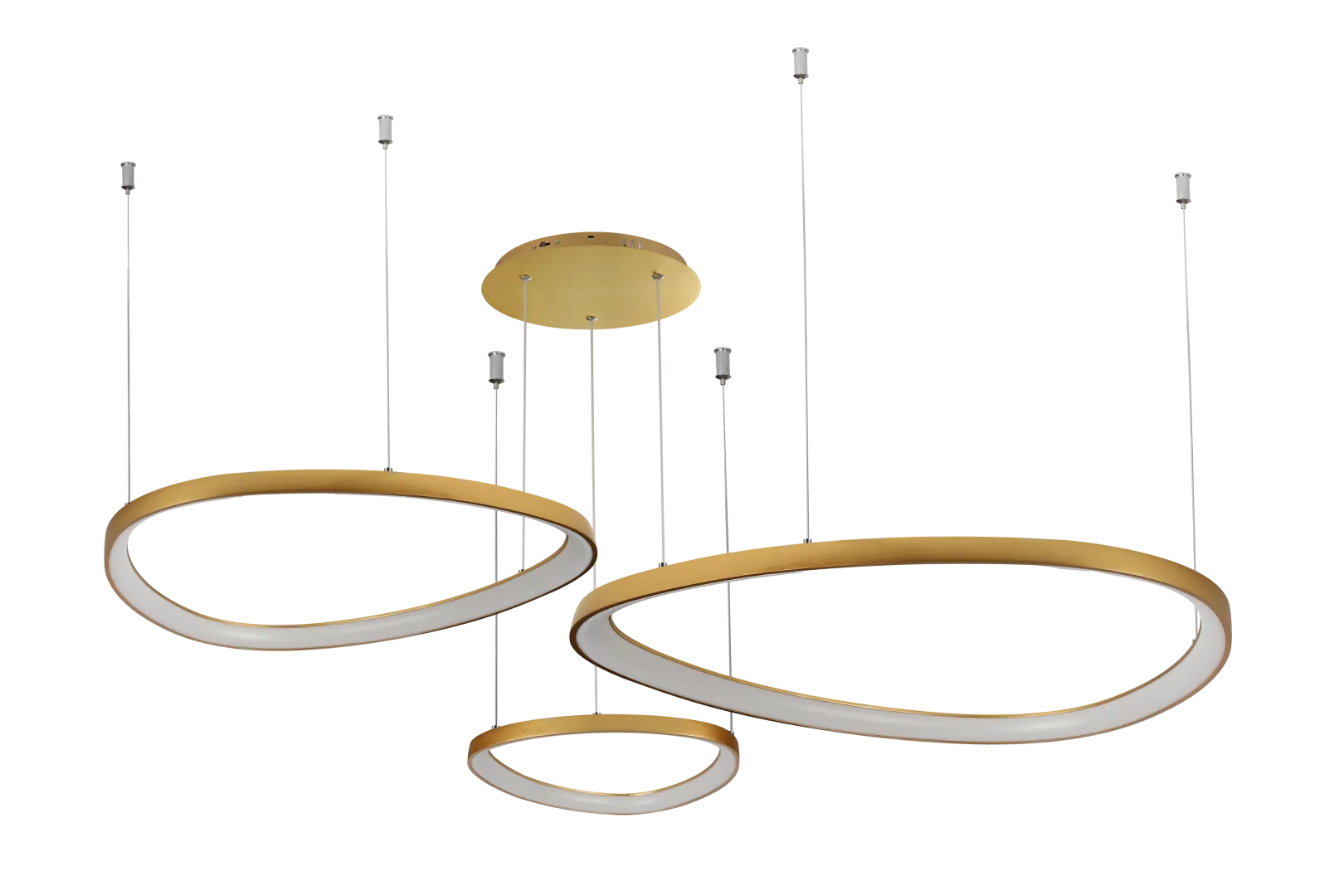

AMANDA PENDANT 42+62+82 CCT SWITCH DIMM GO
AZ5775
Files to download:
Instrukcje montażu
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Informacje podstawowe
Type: PENDANT
Type of light source: LED INTEGRATED
Maximum power: 170W
Energy class: G
Protection class: IP20
Dominant color: GOLD
Main finish: BRUSHED
Dominant material: ALUMINIUM
Accent material: PVC
Ceiling base color: GOLD
Shade color: Gold
Product length [cm]: 150
Ceiling base height [cm]: 5
Ceiling base width [cm]: 29
Lampshade height [cm]: 3,5
Lampshade width [cm]: 42 / 62 / 82 [3]
Lampshade length [cm]: 42 / 62 / 82 [3]
Light source: 3
Lumens [lm]: 13600
Color temperature [K]: 3000 / 4000 / 6000
Dimmable: YES
CCT: YES
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: NO
Control options: • CCT SWITCH• TRIAC DIMMER
Control type > For all: CCT SWITCH
Voltage: ~ 230V
Protection class (against electric shock): 1
Net weight [kg]: 6
Gross weight [kg]: 6,6
Box 1 depth [cm]: 86,5
