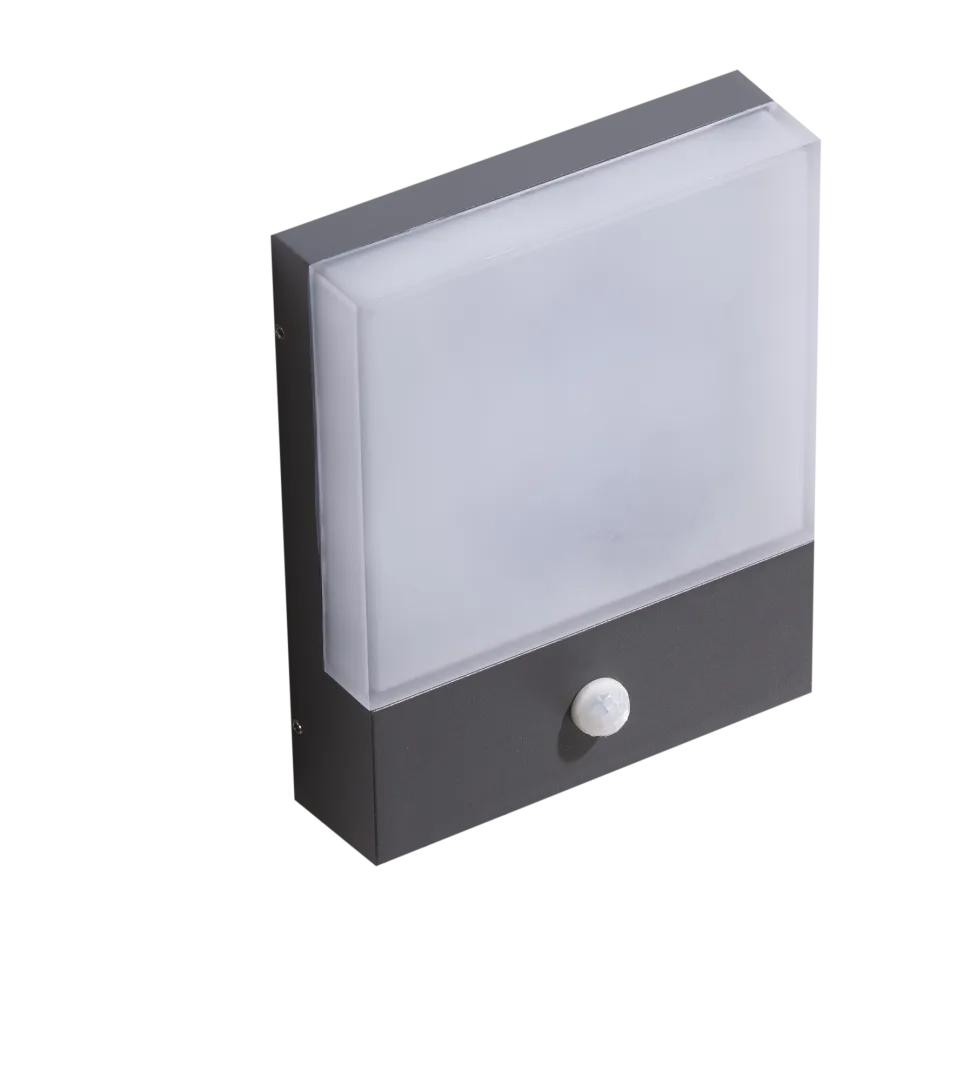

CIVITA SENSOR DGR
AZ4360
Files to download:
Instrukcje montażu
Karty techniczne
Deklaracja zgodności CE [PL]
Deklaracja zgodności CE [ENG]
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Basic information
Type: WALL
Type of light source: LED INTEGRATED
Maximum power: 15W
Energy class: G
Protection class: IP54
Materials and colors
Dominant color: DARK GREY
Main finish: MATTE
Dominant material: ALUMINIUM
Accent material: PVC
Dimensions
Product height [cm]: 20
Product length [cm]: 16
Specifications
Light source: 1
Lumens [lm]: 710
Color temperature [K]: 2900
Beam angle: 122°
Dimmable: NO
CCT: NO
RGB: NO
CRI [Ra]: ≥ 80
Azzardo Smart app: NO
Remote control: NO
Bluetooth control panel: NO
Bluetooth gateway: NO
Motion sensor: YES
Sensor range: DISTANCE: < 8 m. | ANGLES: 170° + 90° | TIME: 10 s. ~ 5 min. | DUSK SENSITIVITY
Control options: • MOTION SENSOR
Control type > For all: MOTION SENSOR
Voltage: ~ 230V
Protection class (against electric shock): 1
Packaging details
Net weight [kg]: 0,85
Gross weight [kg]: 1
Box 1 depth [cm]: 7
