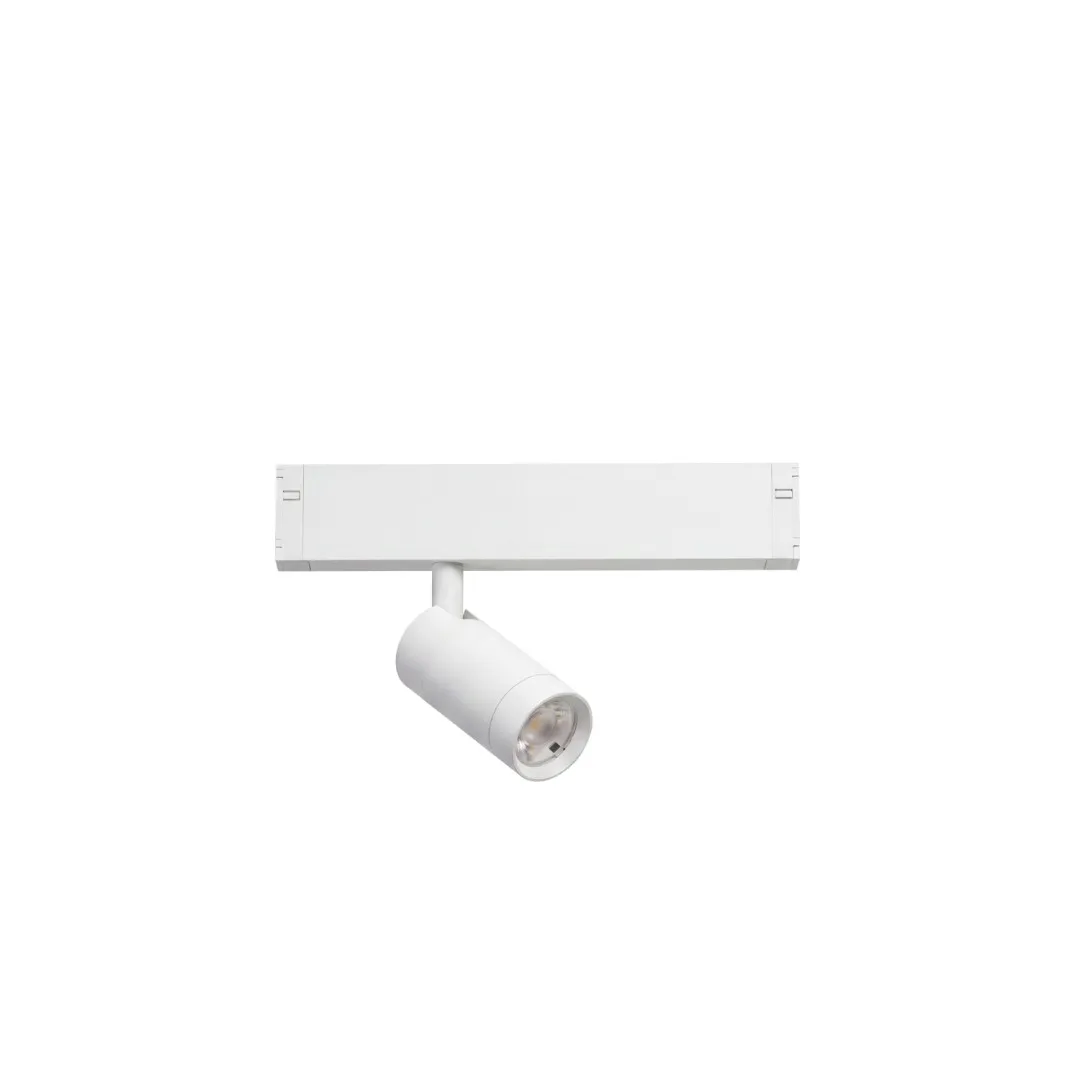

BETA OPTICA 230V TRACK MAGNETIC 7W CCT BLUETOOTH WH
AZ7237
Files to download:
Declaration of conformity CE
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Specifications
Azzardo Smart app: YES
Bluetooth gateway: OPTION
CCT: YES
CRI [Ra]: ≥ 90
Beam angle: 15° ~ 38°
Protection class (against electric shock): 2
Light source: 1
Lumens [lm]: 467
Voltage: ⎓ 48V
Rotation: 340°
Tilt: 90°
Control options: • BLUETOOTH
Bluetooth control panel: OPTION
Adjustment: Yes
RGB: NO
Dimmable: YES
Remote control: OPTION
Color temperature [K]: 3000 ~ 6000
Dimensions
Product length [cm]: min. 22 max. 23
Lampshade width [cm]: 4
Product width [cm]: min. 4 max. 8,5
Lampshade height [cm]: 8,5
Product height [cm]: min. 11 max. 16
Basic information
Energy class: G
Protection class: IP20
Maximum power: 7W
Type: TRACK LAMPS
Track type: BETA MAGNETIC - 230V
Type of light source: LED INTEGRATED
Materials and colors
Dominant color: WHITE
Shade color: White
Accent material: PVC
Dominant material: ALUMINIUM
Main finish: MATTE
