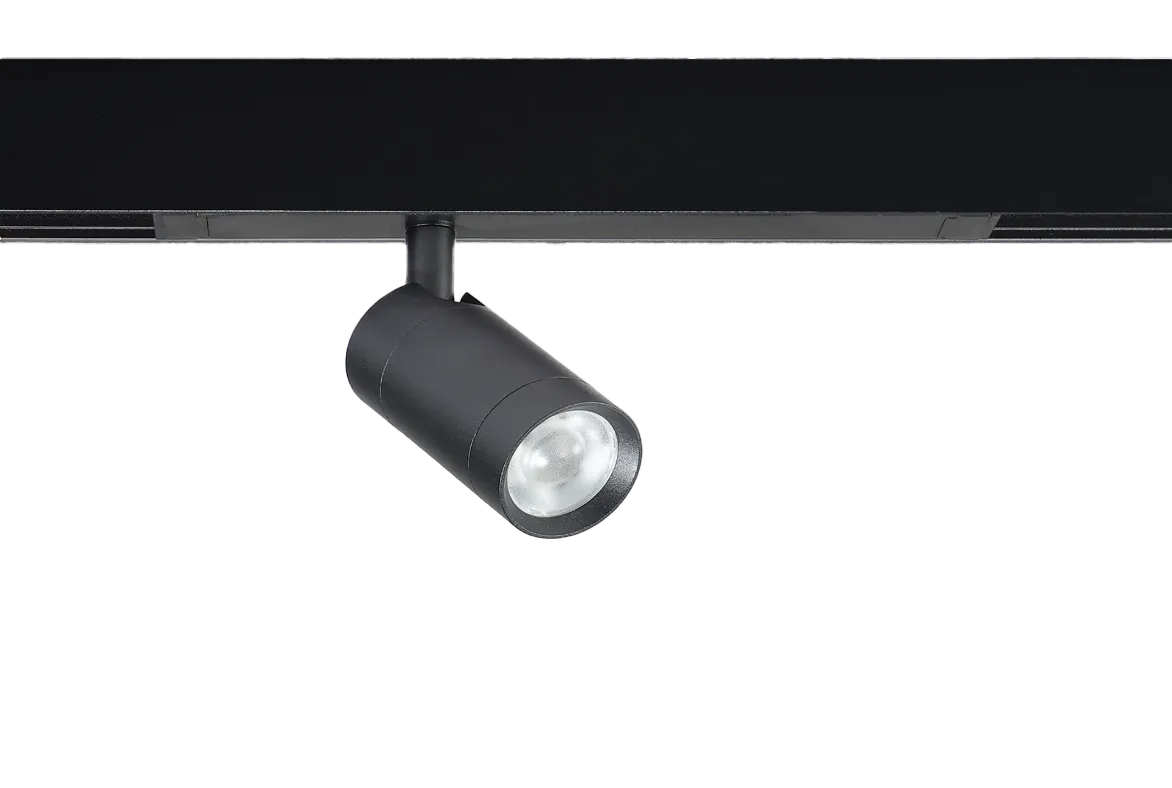

BETA OPTICA 230V TRACK MAGNETIC 7W CCT BLUETOOTH BK
AZ5182
3D Models:
Architect’s Zone
Don’t have an account yet? Register now and gain access to the architect’s zone.
You will be able to browse and download product files.
Product Information
Description
Basic information
Type: TRACK LAMPS
Track type: BETA MAGNETIC - 230V
Type of light source: LED INTEGRATED
Maximum power: 7W
Energy class: G
Protection class: IP20
Materials and colors
Dominant color: BLACK
Main finish: MATTE
Dominant material: ALUMINIUM
Accent material: PVC
Shade color: Black
Dimensions
Lampshade height [cm]: 8,5
Lampshade width [cm]: 4
Product length [cm]: min. 22,6 max. 23
Product width [cm]: min. 4 max. 8,5
Product height [cm]: min. 11 max. 16
Specifications
Light source: 1
Lumens [lm]: 467
Color temperature [K]: 3000 ~ 6000
Beam angle: 15° ~ 38°
Dimmable: YES
CCT: YES
RGB: NO
CRI [Ra]: ≥ 90
Azzardo Smart app: YES
Remote control: OPTION
Bluetooth control panel: OPTION
Bluetooth gateway: OPTION
Control options: • BLUETOOTH
Control type > For all: BLUETOOTH
Voltage: ~ 230V
Protection class (against electric shock): 2
Tilt: 90°
Rotation: 340°
Adjustment: Yes
Packaging details
Net weight [kg]: 0,26
Gross weight [kg]: 0,36
Box 1 depth [cm]: 14,6
